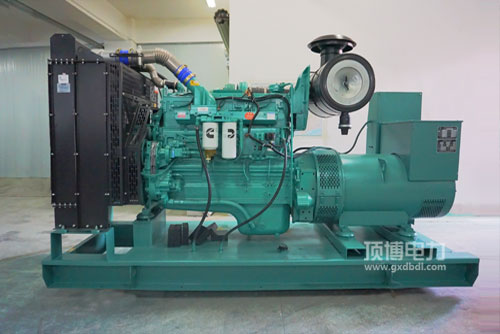

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电厂用打火机汽油资金性好: 先进典型的汽油掌控软件，代表性的STC、ESTC 分级管理掌控软件，比较特殊设定的连杆上边烧燃室，各类高压喷射出汽油，更加充沛做雾化，烧燃更加充沛。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用发起机瞬态耐热性出众: 圆满的发起机全局装修设计，针对康明斯现代感的EFC系统性，操控可靠性强，精密度提高，反应时长快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电量用起倾向升效率高: 整体性设计的主体工程.性能布置房间有效率，执行稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷设备 QSNT. QSK19. QSK38. QSK50充分满足中国内地非旅程最后阶段性及亚洲Tier2. Tier 3排污相关法律法规需求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件必须性好， 打火机运动及维保保養友盒，利润低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出比率 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外型尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净重量 Dry Weight   940kg

224-310KW康明斯发电机组用热车机的特殊性：体积大概小， 缩减比较高， 防雨百叶废气受热，方便于启动服务器，可移动车截电原的先选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机机型	最常用额定功率(kW)Prime Power	备用电源输出kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
